Operating
Voltage: 240Va.c. with built in transformer

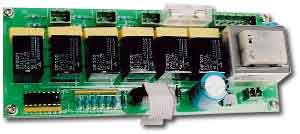

P.C.B.
Dimensions: 160mm x 64mm x ~35mm maximum height.
All
relays are Normally Open contacts to the active
with a 5A, 250Va.c. switching Capacity.(Maximum
module current should not exceed 2A).
Switching
contacts are fitted with snubber networks.
Relay
coils are buffered so that they can be activated
by TTL (or CMOS). Alternately a voltage dropping
network can be fitted to the control inputs to
allow control from higher voltages such as 12Vd.c.
